ARCA STORM
ARCA STORM is the power-upgraded tier of the Arca Medina 20ft Deployable Habitat Unit — built for extended off-grid operations where energy independence is non-negotiable. Every STORM unit ships with a high-performance PVC composite interior panel system replacing standard OSB, paired with an expanded LiFePO4 battery bank and an upgraded 10kW solar-hybrid inverter.
The result is a sealed, insulated, structurally reinforced habitat that can run independently for days without external input. STORM is the preferred configuration for agricultural operations, remote industrial sites, and field teams that need a permanent-feel structure with full mobility.
All ARCA TERRA features are included. Pricing reflects full configured build at point of sale.
Key Features
- All ARCA TERRA features included
- High-performance PVC composite wall panels — moisture-resistant, cleanable, impact-durable
- Expanded 48V LiFePO4 battery bank — 8x 100Ah modules (800Ah total capacity)
- Upgraded 10kW solar-hybrid inverter — higher throughput, dual MPPT inputs
- Pre-wired solar roof conduit — ready for panel array installation
- Reinforced exterior panel mounts for heavy equipment attachment
- Enhanced branch circuit panel — 20-circuit capacity
- Industrial-grade EMT conduit throughout — supports 240V equipment loads
- Dual NEMA 14-50 exterior outlets — welding / heavy equipment ready
- Deployable in extreme weather: rated for sustained winds, rain, and temperature extremes
- Stackable and crane-liftable — no modification to base ISO container frame
- Battery config: 8S (96V/100Ah) or 4S2P (48V/200Ah) selectable at build
* Specifications and availability subject to change. Contact us for custom modifications.

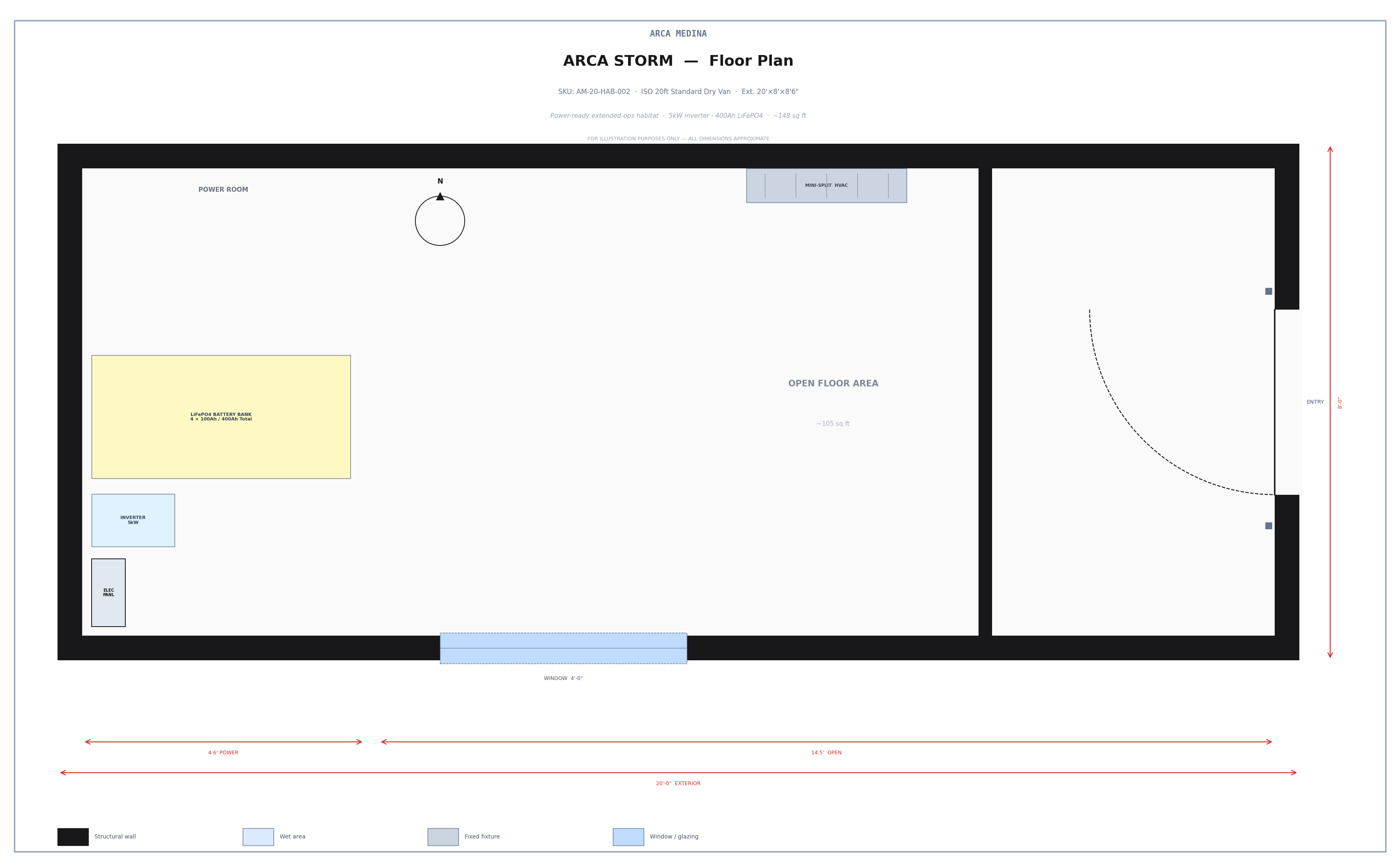

Floor Plan
Floor Plan
Top-down architectural view — all dimensions approximate
