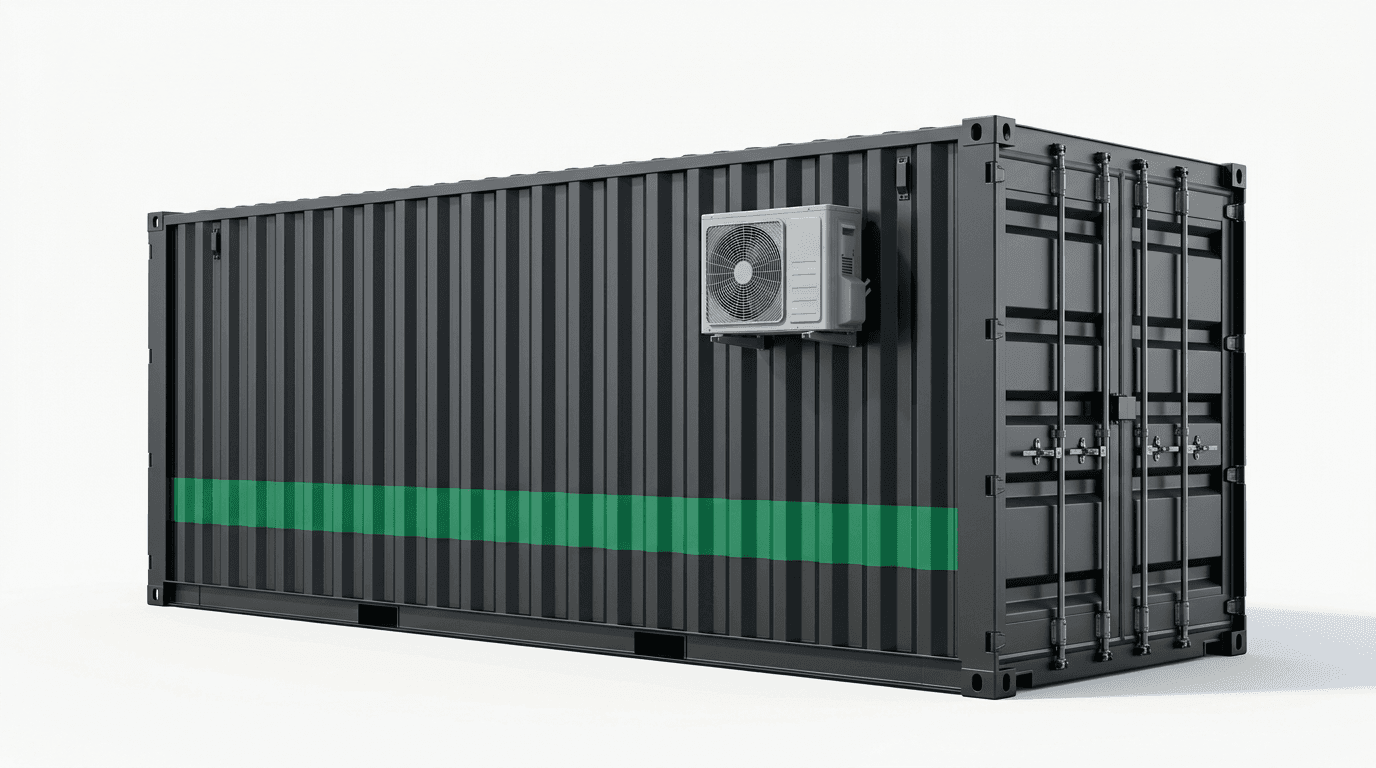

The Arca Medina 20ft Deployable Habitat Unit is a fully self-contained, off-grid-capable living and working space built on an ISO 20ft standard dry van shipping container. Designed for rapid deployment in residential, industrial, and scientific environments, this proof-of-concept unit delivers a complete interior build-out with integrated 48V solar-hybrid electrical infrastructure.
The interior features wood stud framing, closed-cell spray foam insulation, and radiant barrier OSB wall panels. A custom entry vestibule is created by pinning the original cargo doors open and framing an interior personnel door immediately behind them. A single 24"H × 30"W window is positioned on the long side wall for natural light and ventilation.
The electrical system is centered on a 5kW solar hybrid inverter, a 48V battery bank (4× 100Ah LiFePO4), a DC fast charger, and a main distribution panel — all housed on the back wall. The exterior back wall provides a weatherproof main panel, a NEMA generator inlet, and solar roof input. All exterior electrical components are NEMA 3R or 4X rated.
Key Features
- ISO 20ft Standard Dry Van container base — stackable, towable, crane-liftable
- External dimensions: 20'-0" L × 8'-0" W × 8'-6" H
- Interior dimensions (finished): ~19'-0" L × 7'-6" W × 7'-6" H
- Wood internal stud framing
- Closed-cell spray foam insulation — full cavity fill, vapor barrier + thermal performance
- Radiant barrier OSB wall panels (4'×8') — reflective foil face installed inward
- One (1) window: 24"H × 30"W — long side wall
- Entry vestibule: original double cargo doors pinned open, framed interior personnel door immediately behind
- Standard personnel door — framed on its own dedicated wall
- 5kW solar hybrid inverter — 120/240V AC output, off-grid and grid-tie capable
- 48V LiFePO4 battery bank — 4× 100Ah modules, stacked in standard server rack
- Battery config selectable: 4S (48V/100Ah) or 2S2P (48V/200Ah)
- DC fast charger — accepts generator AC input, charges 48V battery bank
- Roof-mounted solar panel input via inverter MPPT charge controller
- Main distribution panel — dead center, back wall interior (14"W × 30"H)
- Branch circuits: lighting, outlets, HVAC, spare
- Exterior weatherproof main electrical panel — dead center, back wall exterior (NEMA 3R/4X)
- NEMA generator inlet box — 30A or 50A — weatherproof, exterior back wall
- Fast charger external input port — exterior back wall, passes through to interior charger
- All exterior electrical components rated NEMA 3R or NEMA 4X
- Interior conduit: EMT (electrical metallic tubing)
- Through-wall conduit: rigid conduit
- Dual charging paths: solar (MPPT) + generator (DC fast charge)
- Deployable in residential, industrial, scientific, and emergency environments
* Specifications and availability subject to change. Contact us for custom modifications.
Floor Plan
Floor Plan

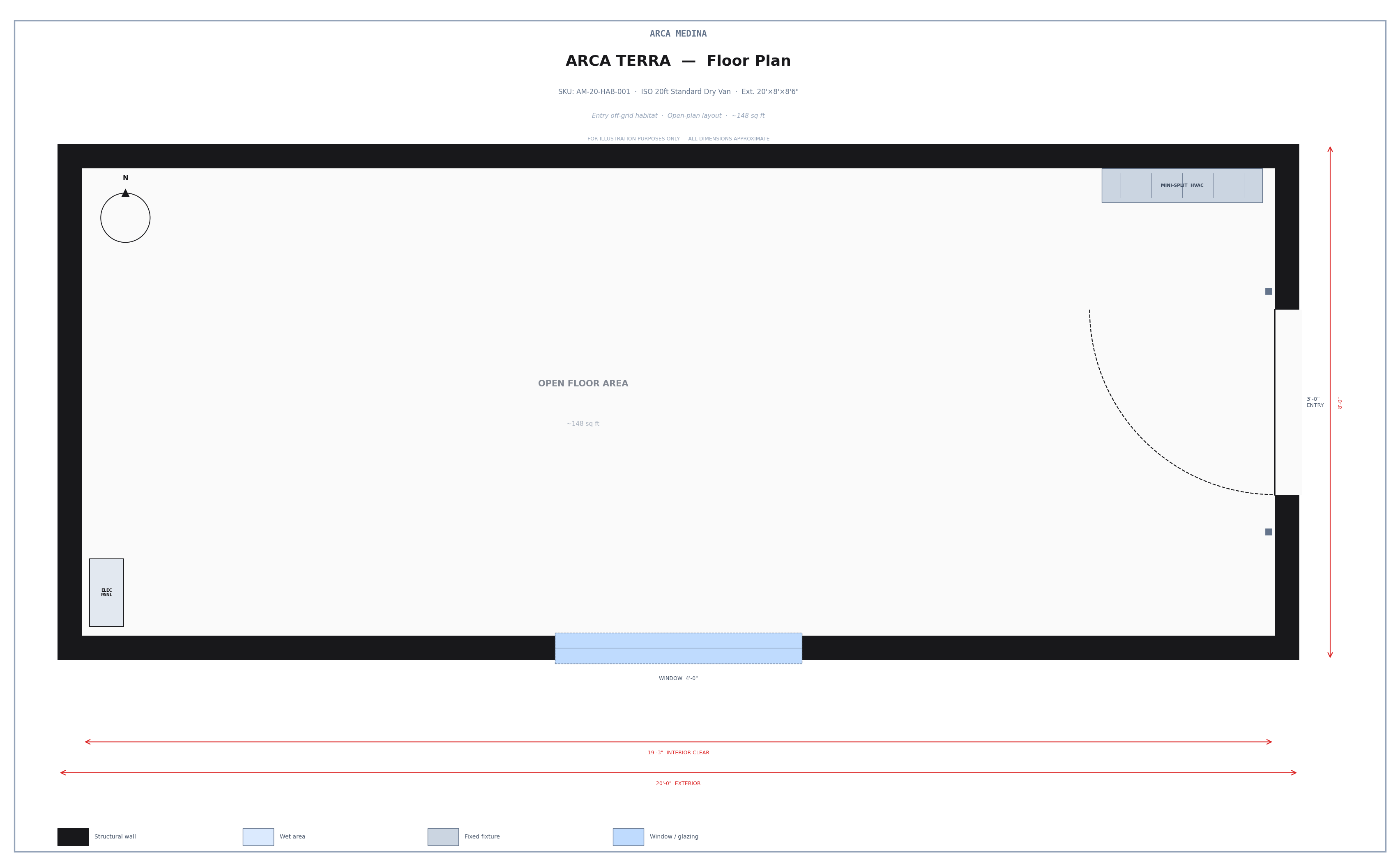

Top-down architectural view — all dimensions approximate
